Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.
it bolts right up to the stock fan shroud, allowing for easy installation.Included with the Mishimoto Powerstroke aluminum radiator is our magnetic drain plug and signature lifetime warranty.

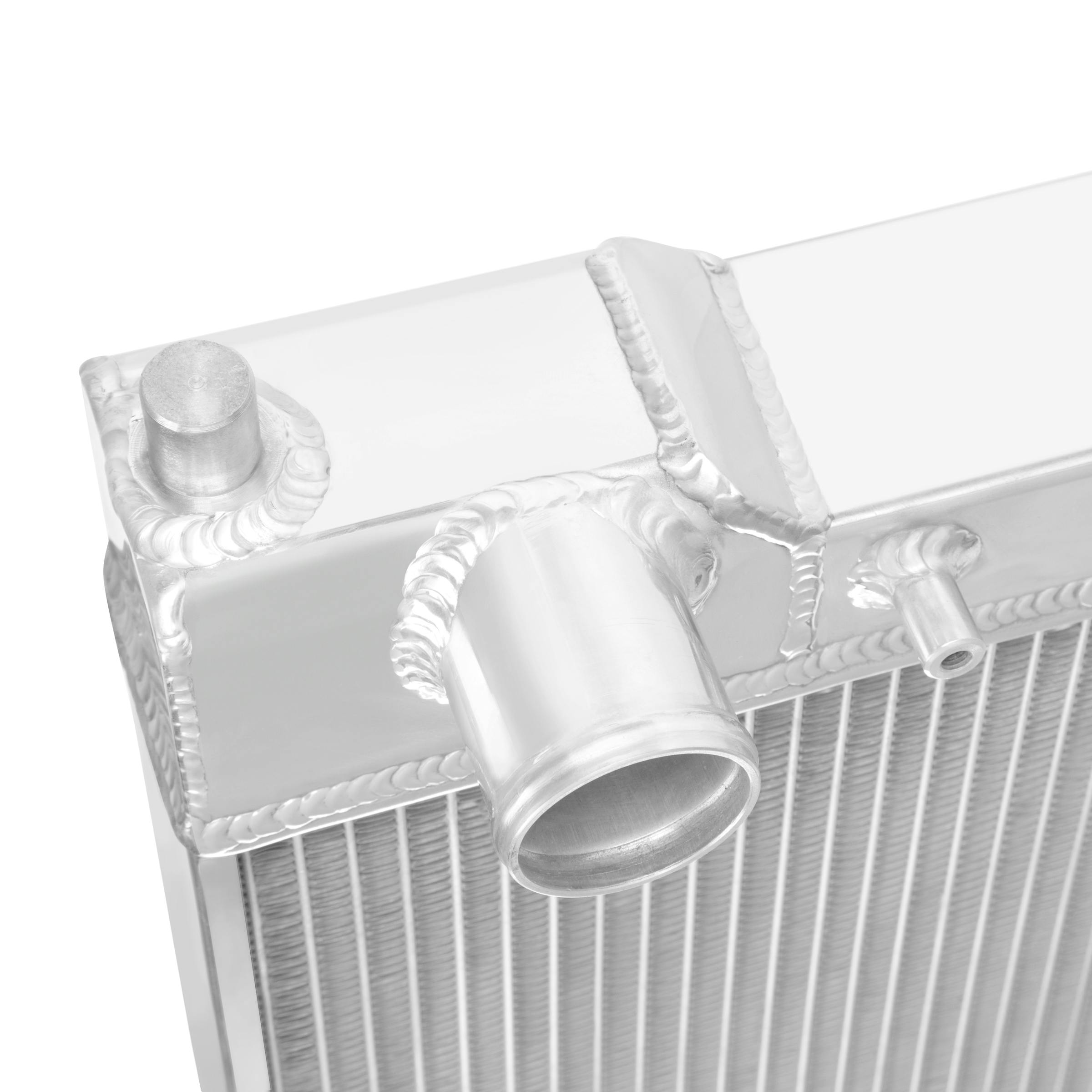

  • Full aluminum construction with durable, TIG-welded end tanks
  • Features a two-row, 2.28-in thick brazed aluminum core, providing ideal fluid temperatures during all driving conditions
  • Increased fluid capacity and superior heat dissipation

Application Summary:

Year Make/Model
1995-1996 Ford F-250
1997 Ford F-250 HD
1995-1997 Ford F-350
1995-1997 Ford F-Super Duty
Attributes
California Proposition 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Core Height 23.54
Core Length 29.87
Core Material Aluminum
Core Row Quantity 2
Core Thickness 2.28
Country of Origin (Primary) CN
Down Flow Or Cross Flow Type Down Flow
Drain Plug Included Yes
Fluid Capacity 6.51
Harmonized Tariff Code (Schedule B) 8708915000
Hazardous Material Code N
Inlet Diameter 1.77
Inlet Location Top Left
Install Difficulty 3
Life Cycle Status Code Available to Order
NAFTA Preference Criterion Code B
Outlet Diameter 1.77
Outlet Location Bottom Right
Overall Height 29.9
Overall Length 29.9
Overall Width 4.5
Radiator Cap Included No
SDR Required Flag N
SellingPoint01 Direct fit for 1995-1997 OBS Ford trucks equipped with the 7.3L Powerstroke
SellingPoint02 Full aluminum construction with durable, TIG-welded end tanks
SellingPoint03 Features a two-row, 2.28-in thick brazed aluminum core, providing ideal fluid temperatures during all driving conditions
SellingPoint04 Increased fluid capacity and superior heat dissipation
SellingPoint05 Perfect upgrade to the stock plastic end tank radiator
SellingPoint06 Ideal for trucks transporting heavy loads, towing, and/or driving in extreme environments
SellingPoint07 Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance
SellingPoint08 Mishimoto Lifetime Warranty
SellingPoint09 N/A
SellingPoint1 Direct fit for 1995-1997 OBS Ford trucks equipped with the 7.3L Powerstroke
SellingPoint10 N/A
SellingPoint11 N/A
SellingPoint12 N/A
SellingPoint13 N/A
SellingPoint14 N/A
SellingPoint15 N/A
SellingPoint2 Full aluminum construction with durable, TIG-welded end tanks
SellingPoint3 Features a two-row, 2.28-in thick brazed aluminum core, providing ideal fluid temperatures during all driving conditions
SellingPoint4 Increased fluid capacity and superior heat dissipation
SellingPoint5 Perfect upgrade to the stock plastic end tank radiator
SellingPoint6 Ideal for trucks transporting heavy loads, towing, and/or driving in extreme environments
SellingPoint7 Includes Magnetic Drain
SellingPoint8 Plug to capture any metallic debris/fragments in your cooling system
SellingPoint9 Mishimoto Lifetime Warranty
TechSpec Applications 1995-1997 F250--1995-1997 F350
TechSpec Chassis Codes N/A
TechSpec Core Height (in) 23.54
TechSpec Core Length (in) 29.87
TechSpec Core Thickness (in) 2.28
TechSpec DPI 1725
TechSpec Drain Plug Thread Size M12 x 1.5
TechSpec Engine Codes N/A
TechSpec Fluid Capacity (gal) 6.51
TechSpec Includes Mishimoto Radiator--Magnetic Drain Plug--1/8-inch NPT Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in) 1.77
TechSpec Material Aluminum
TechSpec Note Model Year 1995 Fors F-250s produced prior to 1/31/1995 use the 1994 model year radiator: 1983-1994 Ford 6.9L & 7.3L IDI Diesel Performance Aluminum Radiator
TechSpec Outlet (in) 1.77
TechSpec Overall Height (in) 29.9
TechSpec Overall Length (in) 29.9
TechSpec Overall Width (in) 4.5
TechSpec Overall Width (ins) 4.5
TechSpec Rows 2
Transmission Oil Cooler Fitting Type N/A
Transmission Oil Cooler Included No
GTIN 00748666005037
